Rotary Kiln for Waste Incineration / Rotary Kiln Furnace / Activated Carbon Rotary Kiln
Waste Incineration Introduction:
The rotary kiln belongs to construction equipment. According to different material, the rotary kiln can be divided into: cement kiln, metallurgy kiln, and limestone kiln.
The cement kiln is mainly used for calcimine of cement clinker; there are dry and wet types. The metallurgy kiln is used in metallurgy industry and iron works for lean iron ore, chromium ore and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and used aluminum hydroxide in aluminum vandal manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
Lime kiln (active lime kiln) is used for calcimine of active lime and dolomite in iron works and alloy works.
Features of Activated Carbon Rotary Kiln Plant:
1. Simple structure
2. Solid parts
3. Stable operation
4. Convenient and reliable production control
5. High capacity
Structure of Coal Fired Rotary Kiln:
The kiln is composed by the cylindrical shell, roller supporting device, supporting device with thrust roller, driving gear unit movable kiln head, sealing device at kiln inlet, coal dust pipe device, etc.
The kiln shell is designed to keep some inclination to level. It is supported by the roller supporting device and equipped with thrust roller device to control the up and down moving of the shell. The driving system is equipped not only the main driving gear unit but also the auxiliary driving used to keep the shell rotating even when the main power is broken so as to prevent the shell from any bending and distortion. As the kiln head and tail are sealed by advanced technology, the sealing of the kiln is fairly reliable.
Rotary Kiln for Waste Incineration Technical Parameters:
| Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2 technical parameter. |
| Inner diameter of shell 2600mm | Shell length 13200mm |
| Downstream arrangement, that is, the direction of material flow is consistent with the direction of smoke flow, the angle of the kiln body is 1.5 degrees. |
| Variable frequency speed control of rotary kiln | 0.1-2.2r/min |
| Drive mode | Single side gear drive |
| Main Motor | 30kw |
| Kiln temperature:850-1200 degree | Surface temperature of kiln shell: 180 degree |
| Expansion mode | Linear free expansion at both ends |
| Total equipment weight | approx. 54.5t |
| ★Customized waste incineration rotary kiln can be provided according to the customers' different industries |
Product Tags:
|
|

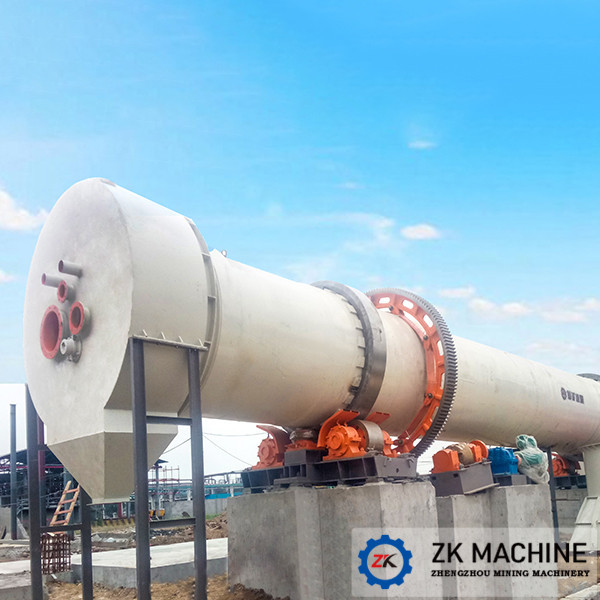

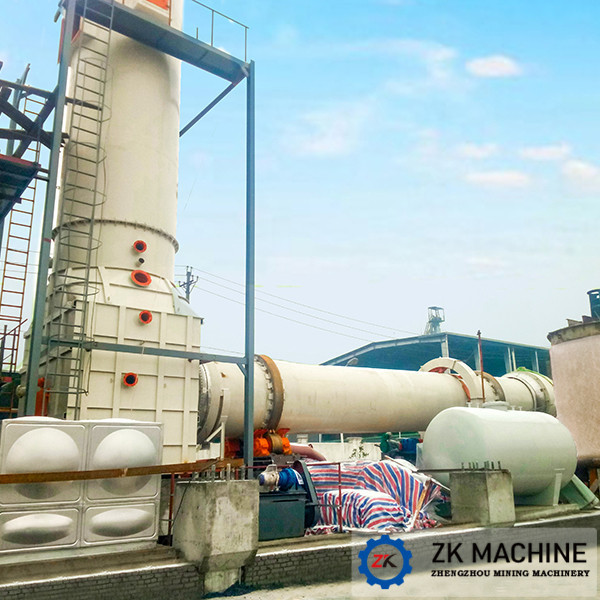

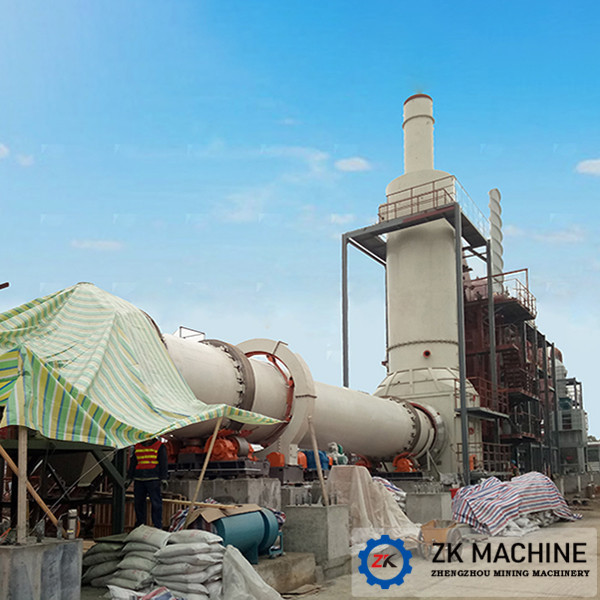

Rotary Kiln for Waste Incineration Images
|
